SW-1210SG+ WATERPROOF HiVolt Digital servo (37kg-0,12s/60°)

The SW-1210SG+ is the premier waterproof digital servo in the Savox Lineup. This coreless servo provides great torque and is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.

Features:

• NEW: SSR mode compatible
• NEW: SOFT START
• Strong unique steel gears provide durability and assurance.
• Capable of HV operation.
• Waterproof construction for harsh elements.
• Ideal for cars, truck, and boats subject to water or snow.

• Torque @7.4v - 32.0kg
• Torque @8.4v - 37.0kg
• Speed @7.4v - 0.13 sec/60 deg
• Speed @8.4v - 0.12 sec/60 deg

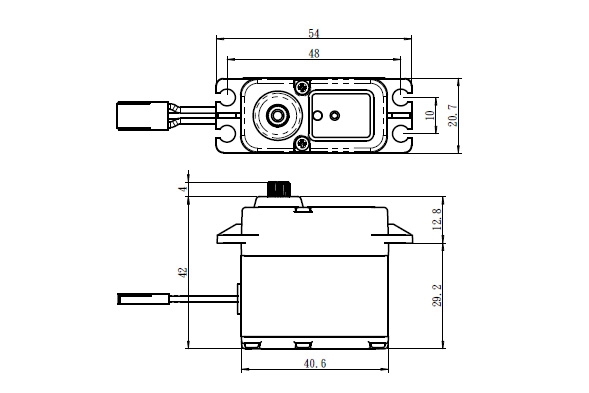

• Dimensions L x W x H (mm): 40.6 x 20.7 x 42.0
• Weight: 71.0g

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 150 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
