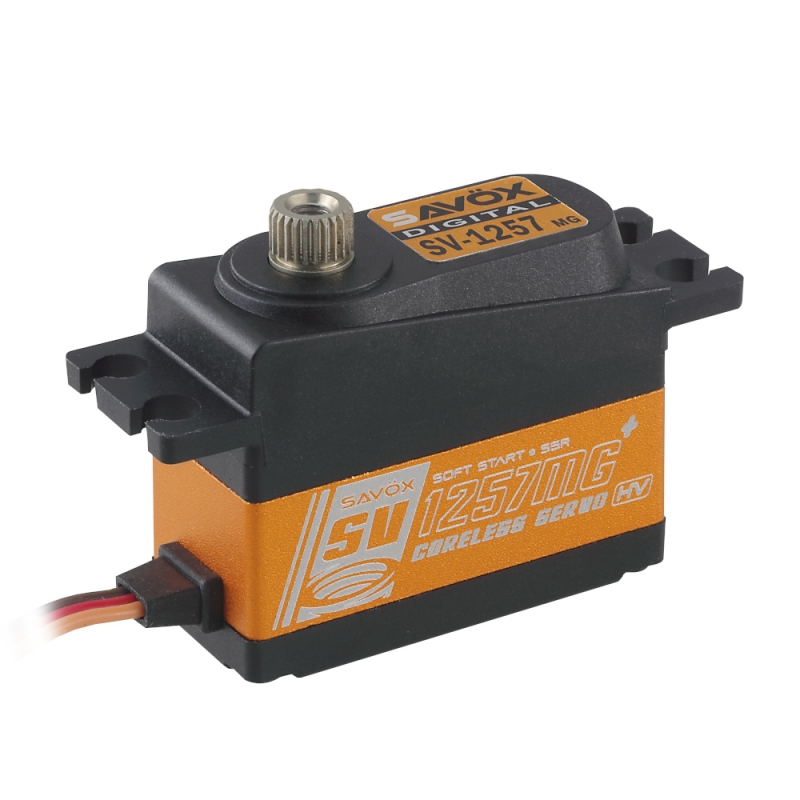

SV-1257MG+ HiVOLT digital servo (6kg-0,045s/60°)

Code: SAVOX-SV1257MG+
Availability: available
Brand:
Price incl. VAT: 1.499 Kč

The SV-1257MG+ mini-sized, metal-geared, digital servo is ideal for those that need a fast mini servo, but prefer to operate it using a higher voltage such as a LiPo receiver battery as a power source.

Features:

  • Steel gear train provide durability against heavy use.
  • Capable of HV operation.
  • Aluminum middle case allows for cooler operating temperatures.
  • NEW: SSR mode compatible
  • NEW: SOFT START

Specifications:
  • Torque @6v - 2.5kg
  • Torque @7.4v - 4.0kg
  • Torque @8.4v - 6.0kg
  • Speed @6v - 0.07 sec/60 deg
  • Speed @7.4v - 0.055 sec/60 deg
  • Speed @8.4v - 0.045 sec/60 deg
  • Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
  • Weight: 29.5g

Technical Details
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 110° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 154° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
