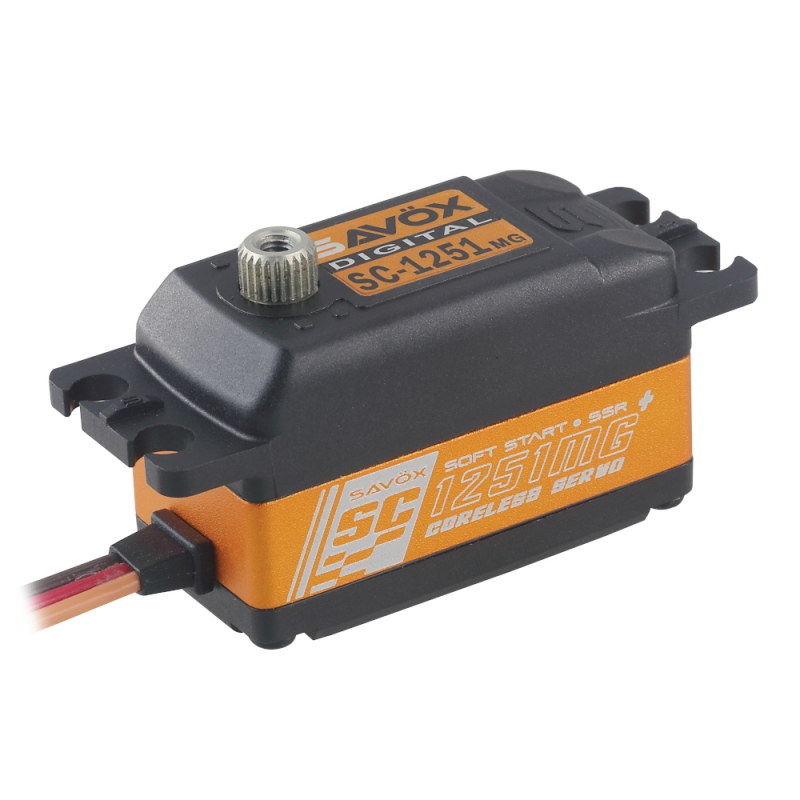

SC-1251MG+ Digital servo LOW PROFILE (9kg-0,09s/60°)

The SC-1251MG+ is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:

• Metal gear train ensures durability under harsh situations.
• Ideal for 1/10 on road vehicles.
• Aluminum case provides cooler operating temperatures.
• NEW: SSR mode compatible
• NEW: SOFT START

• Torque @ 4.8v - 7.0kg
• Torque @ 6v - 9.0kg
• Speed @ 4.8v - 0.10 sec/60 deg
• Speed @ 6v - 0.09 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 25.4
• Weight: 44.5g

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 950 → 2050 µ second
• Maximum Travel: Appx 160° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Coreless
