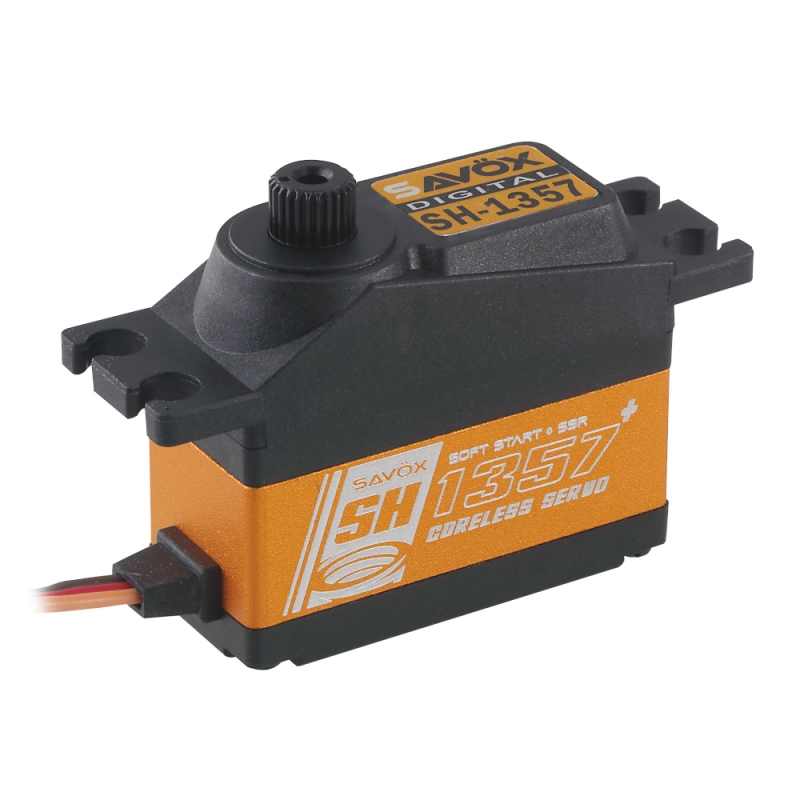

SH-1357+ Digital servo (2,6 kg-0,07s/60°)

Code: SAVOX-SH1357
Availability: available
Brand:
Price incl. VAT: 1.249 Kč

The Savox SH-1357 is a mini sized, digital servo that is extremely fast and ideal for small applications where speed is essential.

Features:

  • Extremely fast for quick response.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal for rudder on 450 level helis, CCPM on 500 level helis, and steering servo on 1/12th scale cars.
  • Dual ball bearing support.
  • NEW: SSR mode compatible
  • NEW: SOFT START

Specifications:
  • Torque @4.8v - 1.9kg
  • Torque @6v - 2.5kg
  • Speed @4.8v - 0.09 sec/60 deg
  • Speed @6v - 0.07 sec/60 deg
  • Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
  • Weight: 26.0g

Technical Details
  • Operating Temperature: (-10° - 50°C)
  • Running Current (no load): 80mA @4.8V, 100mA @6.0V
  • Stall Current (at locked): 800mA @4.8V, 1000mA @6.0V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 110° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 154° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
