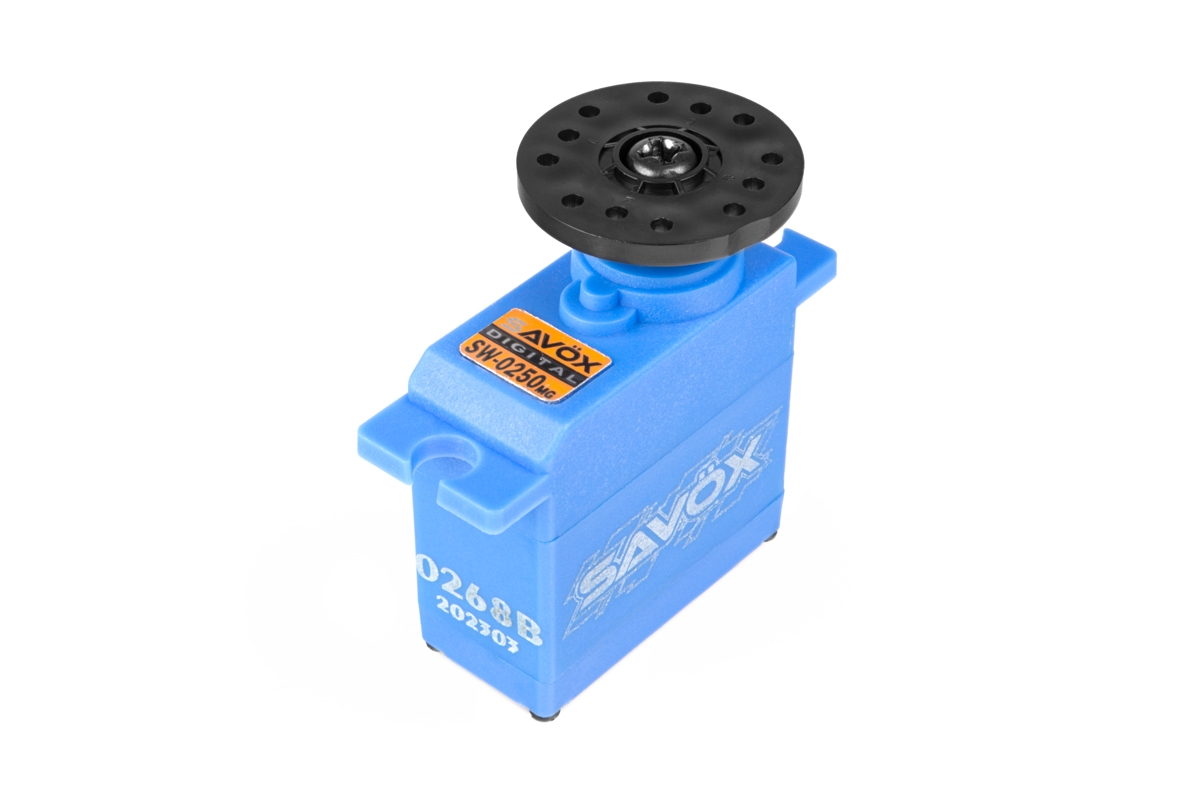

SW-0250MG+ WATERPROOF Digital servo (5,0kg-0,11s/60°)

Code: SAVOX-SW0250MG
Availability: available
Brand:
Price incl. VAT: 799 Kč

The SW-0250MG+ is a waterproof, high torque, digital mini servo that performs! An excellent replacement for the standard servo found in Traxxas 1/16 scale vehicles.

Features:

  • Strong metal gear train for added durability.
  • Waterproof case design.
  • Ideal for cars and boats subject to water or snow.
  • Ideal for Traxxas 1/16 vehicles.
  • NEW: SOFT START

Specifications:
  • Torque 4.8v - 3.5kg
  • Torque 6v -5.0kg
  • Speed 4.8v - 0.14 sec/60 deg
  • Speed 6v - 0.11 sec/60 deg

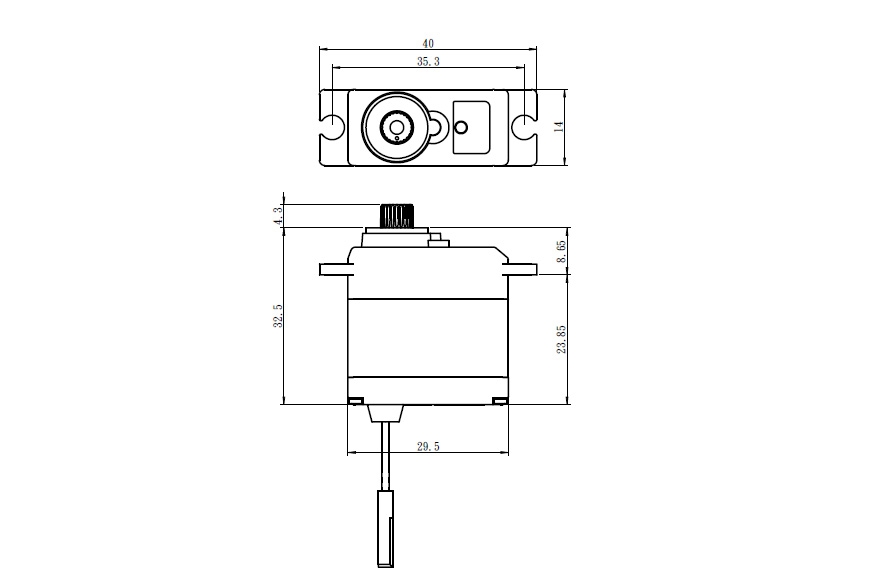

  • Dimensions L x W x H (mm): 29.5 x 14.0 x 32.5
  • Weight: 25.0g

Technical Details
  • Operating Temperature: (-10° - 50°C)
  • Running Current (no load): 80mA @4.8V, 100mA @6.0V
  • Stall Current (at locked): 1000mA @4.8V, 1250mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
