XAG R150 2022

Code: 1XAGR150
Availability: not available
Brand: XAG

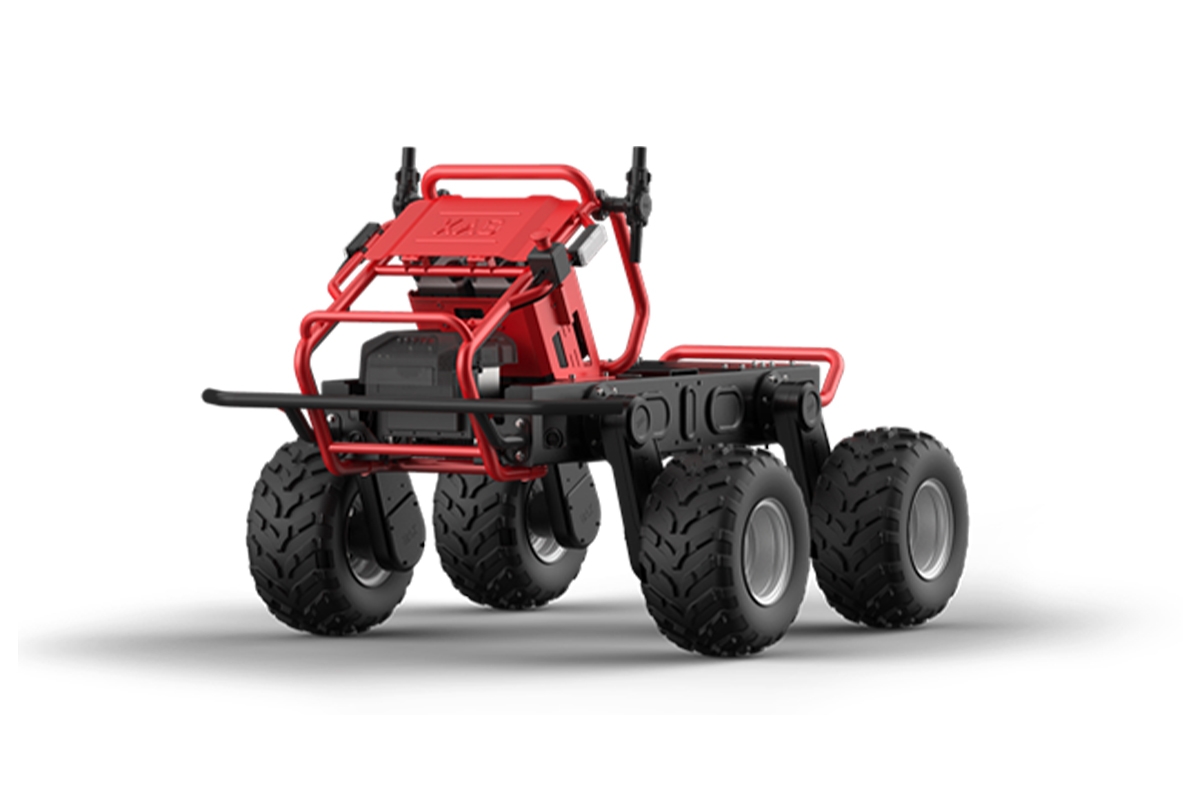

XAG R150 2022 Unmanned Ground Vehicle


A Customised Platform for Every Agricultural Mission

XAG R150 Unmanned Ground Vehicle is born for the next generation farming with unmanned systems.
Powerful scalability and multiple operation modes, this is the first mass-produced agricultural robotic
platform of its kind. From precision crop protection, field scouting to on-farm material delivery, it offers
the industry-leading ground-based autonomous solutions that fit you the best.

Unmanned Operations with Smart Control
One System for Multiple Jobs

Modular / extensible design
Optional payload systems

High-speed jet spraying
Precise and efficient

Easy palm control
Simple to use

Powerful momentum
Traverse various terrains

Automated delivery
Hands-free operations

High-intensity Structure
Multiple Protections from Harsh Condition

High-strength integration steel frame
Roll cage to improve body strength and durability

Customise for agricultural scenarios
Adjustable ground clearance of chassis allows movement between dense orchards

Highly modular design
Easily switch between different wheel sets to adapt various terrain

IP67 waterproof and dust-resistance
Convenient to clean and maintenance

High-performance Motors Unleash Strong Momentum, Traverse with Ease


Four-wheel drive
Max. torque at 1000 newton-metres

High-performance brushless motor
Instantaneous power output for superior off-road performance

Electronic parking brake system
Brake cut off to ensure safe, reliable driving

Features:
Newton-metres: 1000
Standard operational speed: 1.2 m/s
Load capacity: 150 kg
Min. turning diameter: 0.7 metres

RTK high-accuracy navigation
Autonomous driving at centimetre-level precision

Optical positioning aided
Keep navigating without signal

AI mobility control
Intelligent road condition prediction

Real-time transmission
High-speed 4G + wireless networking

XAG R150 Unmanned Ground Vehicle SPRAY GROUND 2 VERSION

Precise Spraying in Every Direction

When equipped with XAG JetSprayer™ System, R150 can conduct fully autonomous crop spraying operation with maximum efficiency* of 5 hectares per hour

Smart liquid tank: 150 litres
Max. spray width: 12 metres
Adjustable atomisation level: 60-200 μm
Rated flow (dual pump):  4.8 L/min

*Max. operational efficiency is measured under the condition that the ground vehicle continuously operates on plain fields with the speed of 1.2m/s and spray width of 12m.

Jet spray atomization, adjustable droplets
The high-pressure jet engine projects a targeted, high-velocity airflow that can atomize a liquid into particles at the micron level, precisely at target areas, adjustable to better contact the crop surface.

Smart Pan Tilt, Omni-directional Spray
Brushless direct-drive pan tilt with embedded gyroscope automatically maintains the spray angle of JetSprayer™, which facilitates spot spraying as well as 360° coverage.

Vertical swing (pitch)
Max. angle: 200 °
Max. angular velocity: 360 ° /s

Horizontal swing (heading)
Max. angle: 290 °
Max. angle: 180 ° /s

POSSIBLE ADD-ONS (Sold separately)

XAG RevoMower 2

Adjust power and travel speed based on the thickness of weeds to easily cut shrubs, reeds and many other types of shrubbery. The optimum solution for land reclamation and orchard weeding!

Smart Variable - speed Mowing
Maximize working efficiency

Alloy Steel Dual Blades
Adjustable height between 2-17 cm

Digital Operation Traceable operation data

90 cm maximum cutting width

XAG Cargo Rack 2

200 Kg: Maximum payload

1080X1080mm sturdy rack
