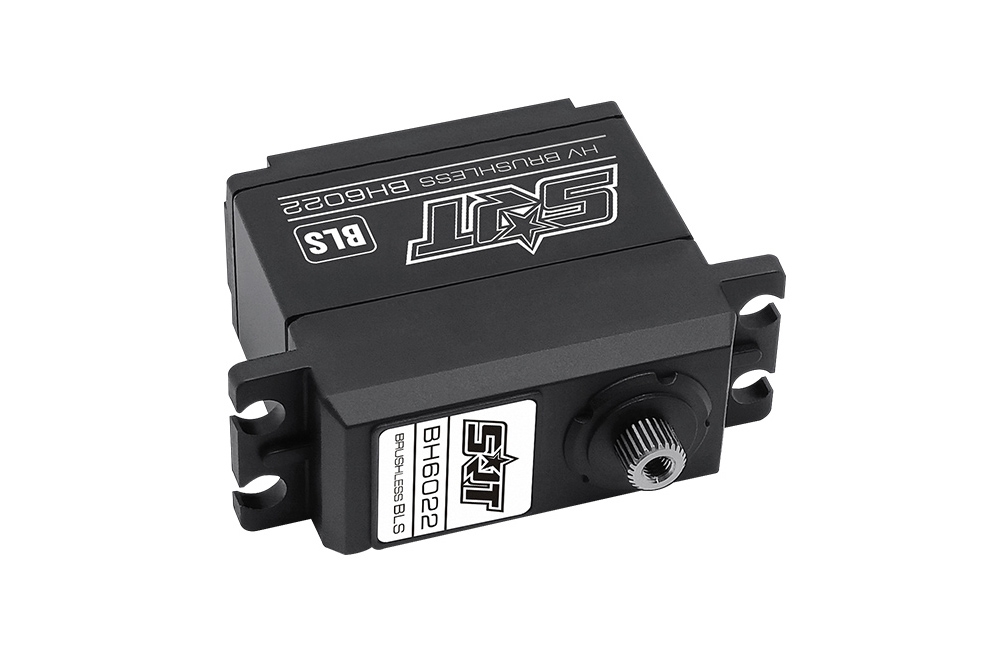

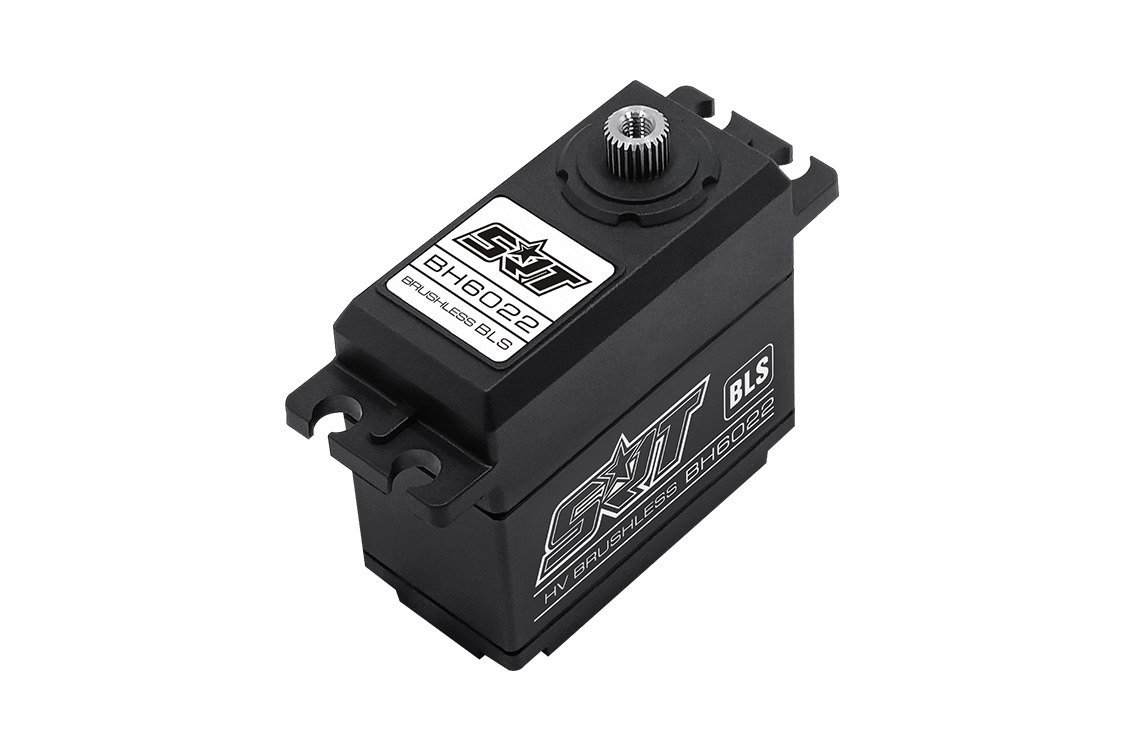

BH6022 HiVOLT BRUSHLESS Digital servo (22 kg-0,06s/60°)

KEY FEATURES

• Ideal for 1/10 on road/off road applications
• incredible efficiency and low power consumption
• Aluminum case for good heat dissipation
• NMB dual main bearings
• 25T output shaft

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless

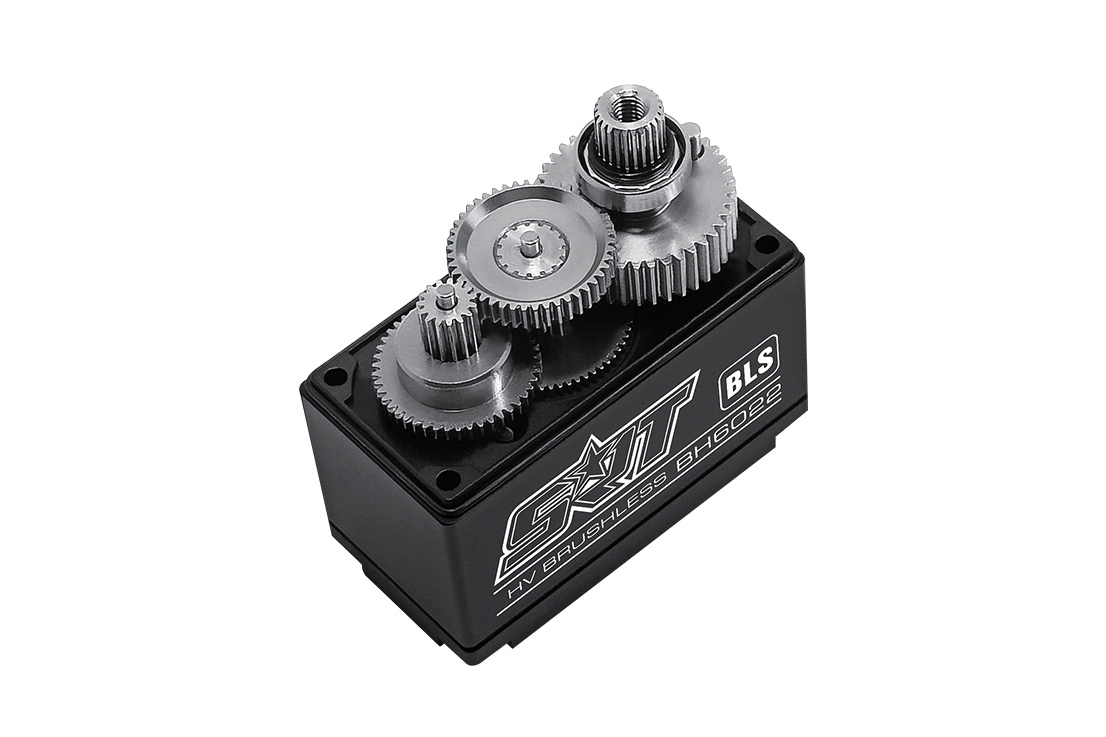

• Gear Type: Metal
• Gear Material: Titanium & Alu
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.10 sec/60 degrees at no load
• operating speed (7.4v): 0.08 sec/60 degrees at no load
• operating speed (8.4v): 0.075 sec/60 degrees at no load
• stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
• stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
• stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
• potentiometer drive: direct drive
• dimensions: 41.3x20.5x38.3 mm /1.6x0.8x1.51 in
• weight: 69.0g (2.29 oz)
• connector wire length: jr 300 mm
