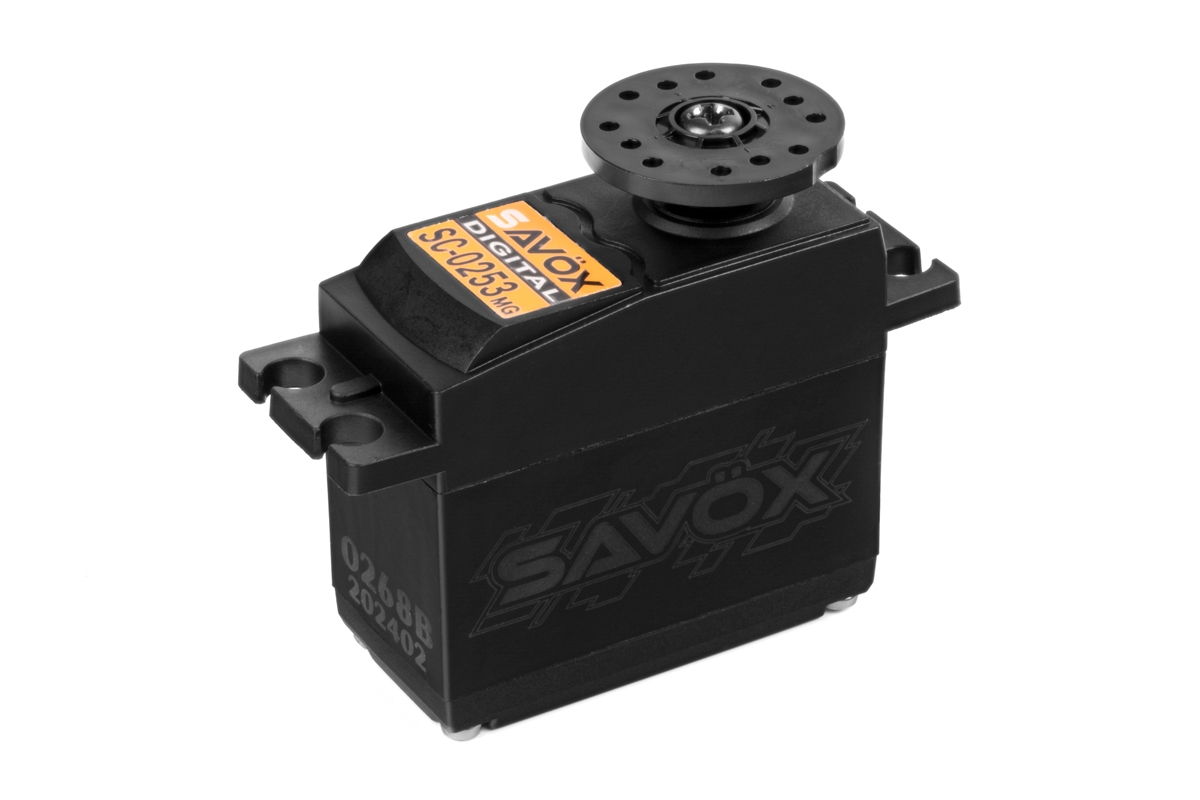

SC-0253MG+ Digital servo (6,0kg-0,15s/60°)

Code:	SAVOX-SC0253MG+
Availability:	available
Brand:
Price incl. VAT:	649 Kč

Digital standard servo with DC motor and metal gears, 2x ball bearing, 4.0/6.0kg at 4.8/6.0V and 0.17/0.15s at 4.8/6.0V, weight 59.0g, 40.7x19.6x37mm. Operating voltage 4.8 - 6.0V.

The SC-0253MG is a budget friendly, digital standard servo with metal gears and a bearing support for those wanting more than what a standard servo offers.

Features:

Strong metal gear train for added durability.
Ideal for 1/10 cars and planes.
Great replacement for standard servos with plastic gearing.

Specifications:

Torque @ 4.8v - 4kg
Torque @ 6v - 6.0kg
Speed @ 4.8v - 0.17 sec/60 deg
Speed @ 6v - 0.15 sec/60 deg

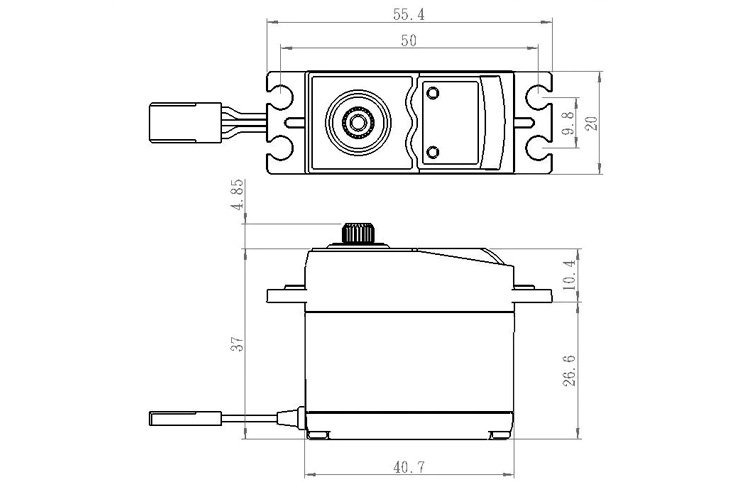

Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0
Weight: 59.0g

Technical Details

Operating Temperature: (-10° - 50°C)
Running Current (no load): 220mA @4.8V, 240mA @6.0V
Stall Current (at locked): 800mA @4.8 V, 1000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
