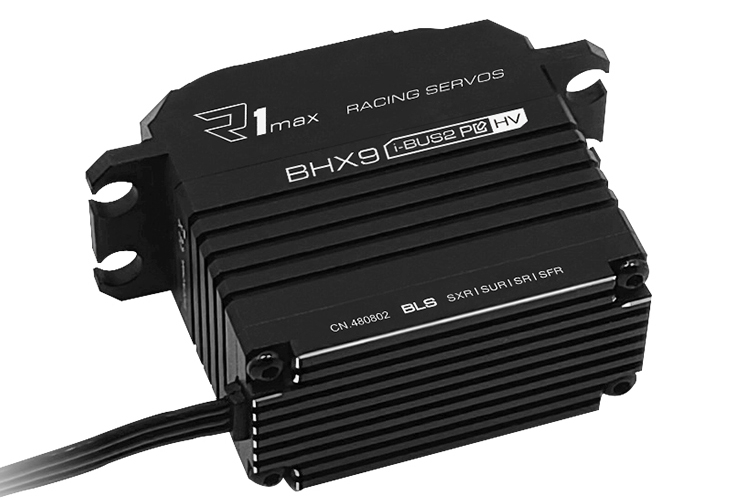

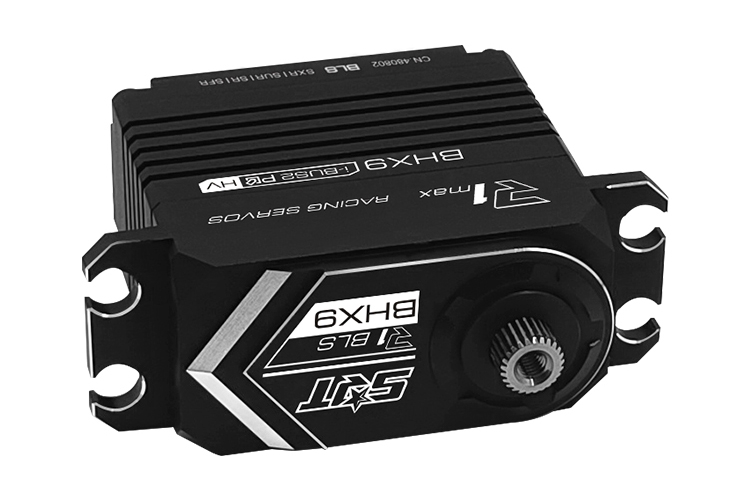

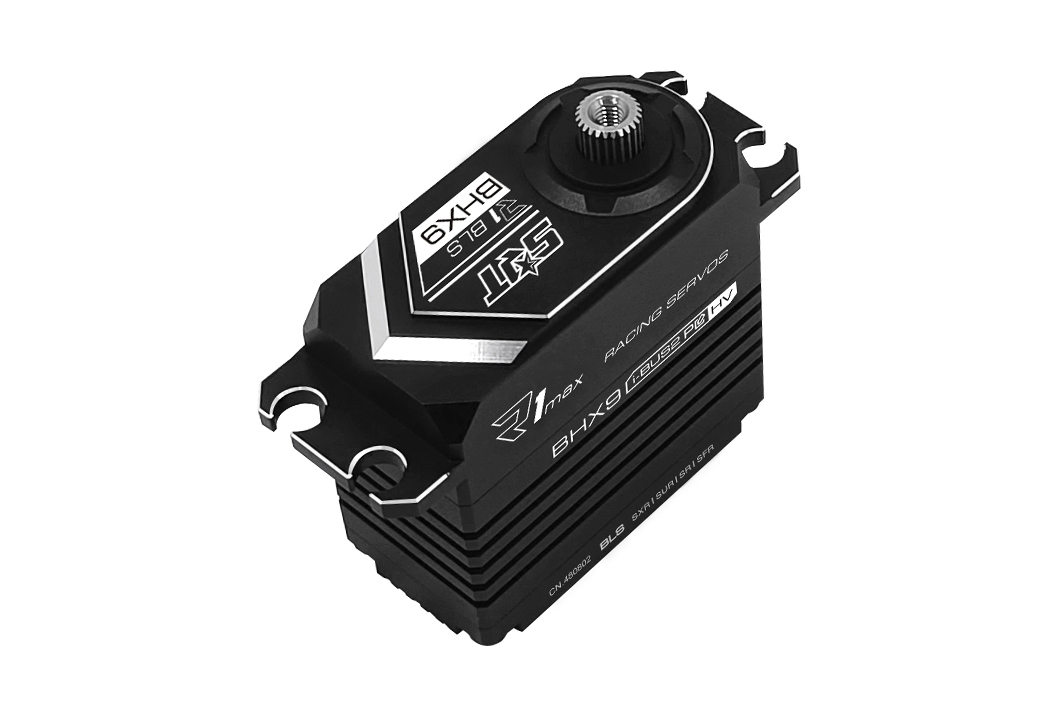

BHX9 HiVOLT BRUSHLESS Digital servo (75 kg-0.10s/60°)

Code: SRT-BHX9
Availability: available
Brand:
Price incl. VAT: 3.299 Kč
Digital HiVolt standard servo with 4-pole brushless motor and metal gears.

SRT BHX9

The new SRT servo series R1max brings 4-pole brushless motors with uncompromising performance, voltage, temperature and signal logging, or support for high-speed transmission modes of Futaba, Sanwa and FlySky. All in a sleek all aluminum housing and with steel gears.


KEY FEATURES

  • Ideal for 1/8 - 1/5 scale on-road and off-road scale applications
  • Superior Holding Torque
  • Incredible efficiency and low power consumption
  • Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
  • CNC Machined aluminum case for exceptional cooling
  • Programmable High torque Brushless servo
  • Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
  • Supporting i-BUS2
  • 25T output shaft

PRODUCT SPECIFICATIONS

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless 4-pole
  • Gear Type: Metal
  • Gear Material: Aluminum 7075 + Steel
  • Control system: pulse width control
  • Working frequency: 1520μs / 330Hz
  • Operating voltage: DC 6.0-8.4V
  • Operating temperature range: -10 to + 60 deg
  • Operating speed (6.0v): 0.15 sec/60 degrees at no load
  • Operating speed (7.4v): 0.11 sec/60 degrees at no load
  • Operating speed (8.4v): 0.10 sec/60 degrees at no load
  • Stall torque (6.0v): 55.0kg.cm
  • Stall torque (7.4v): 65.0kg.cm
  • Stall torque (8.4v): 75.0kg.cm
  • Potentiometer drive: direct drive

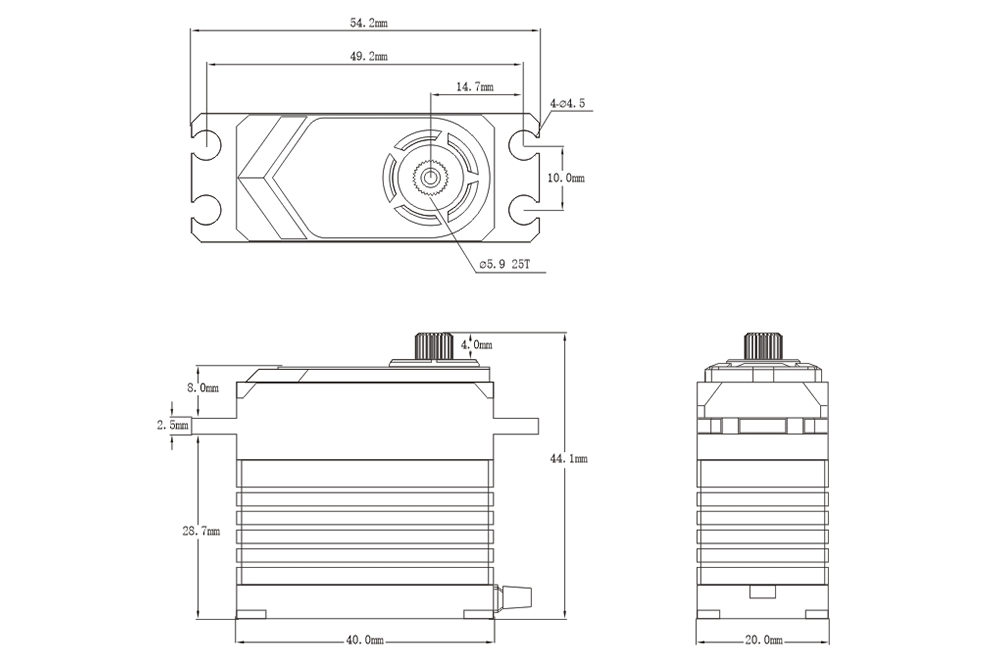

  • Dimensions: 40.0 x 20.0 x 39.2 mm
  • Weight: 82.0 g
  • Protection: IP67
  • Connector wire length: JR 300 mm
