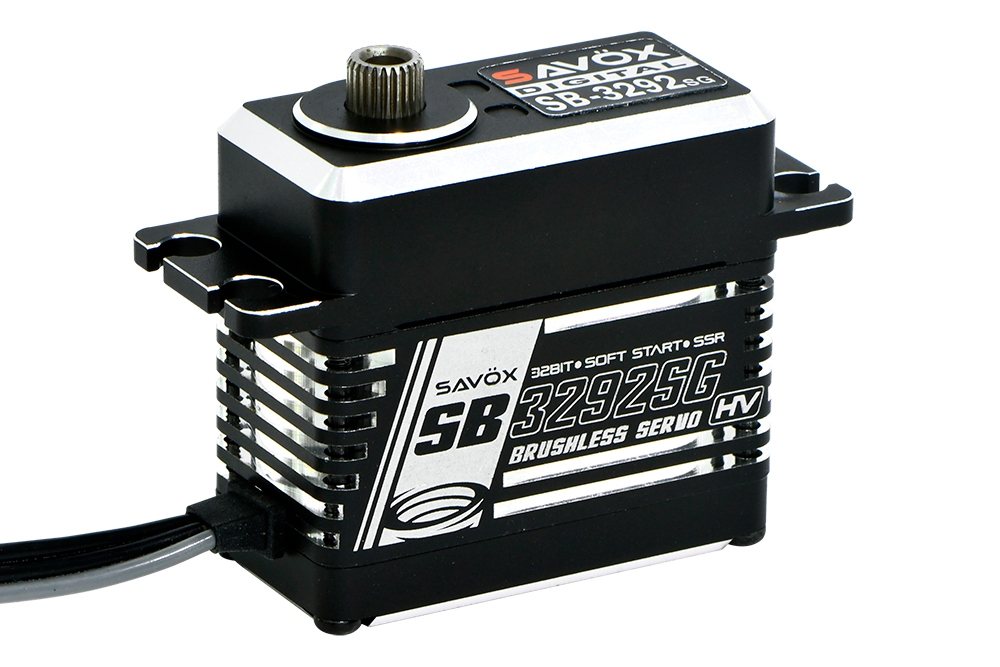

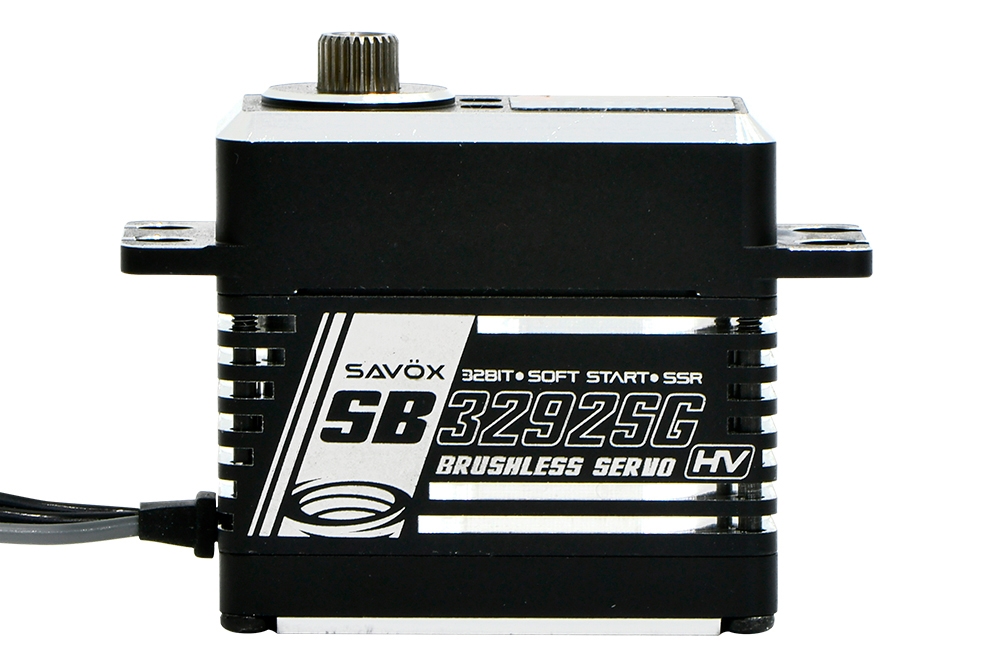

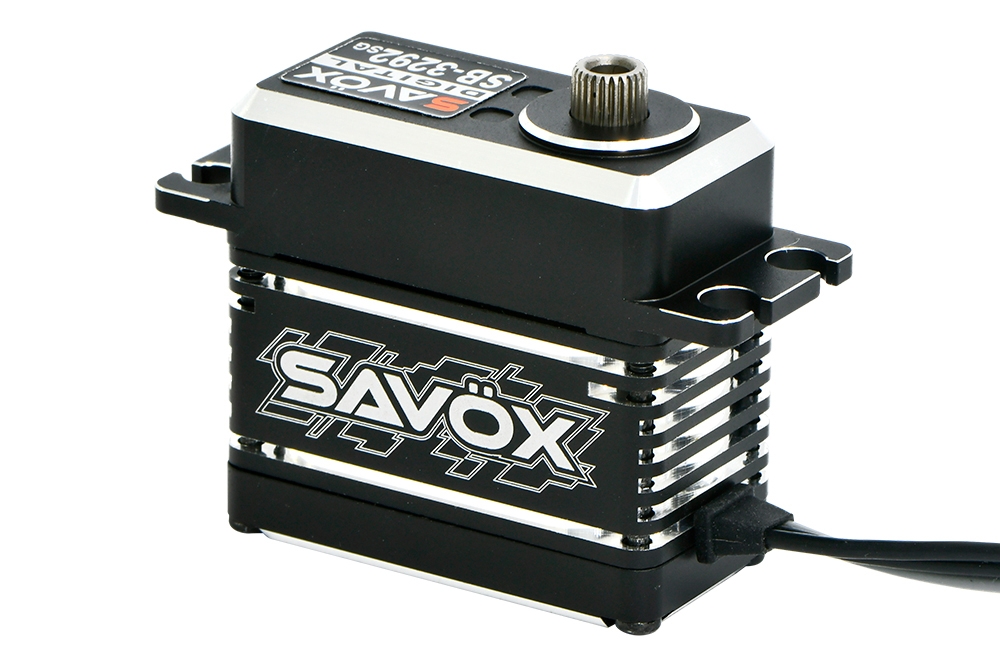

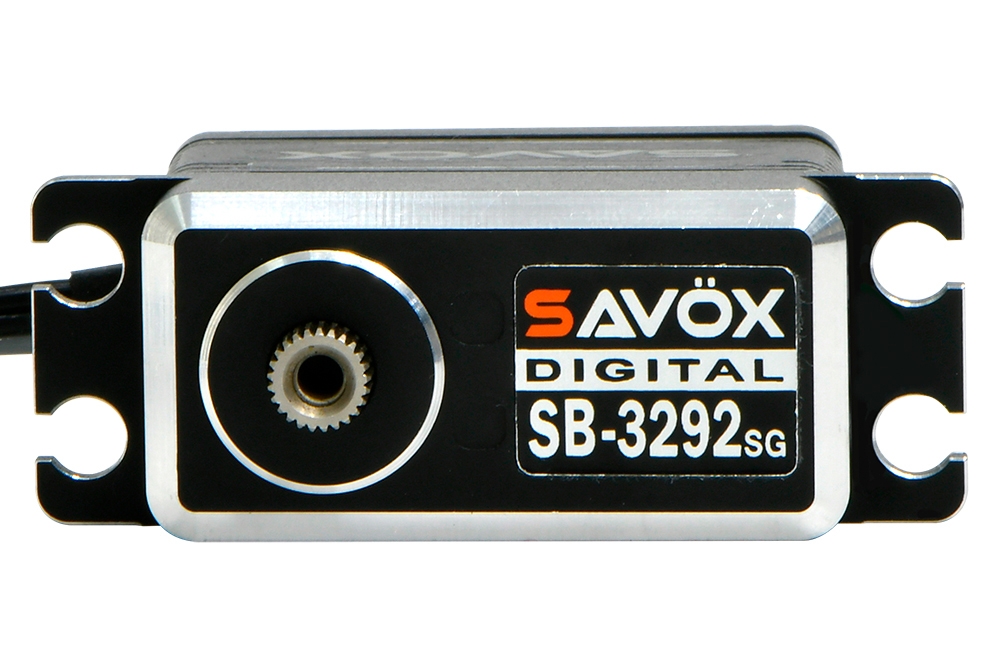

SB-3292SG BRUSHLESS HiVOLT Digital servo (55kg-0,055s/60°)

Digital HiVolt standard servo with Brushless motor and metal gears, 3x ball bearing, torque 32.0/40.0/55.0 kg at 6.0/7.4/8.4 V and 0.085/0.07/0.055 s at 6.0/7.4/8.4 V, weight 70.0 g, dimensions 40.3 x 20.2 x 38.7 mm. Operating voltage 4.8 - 8.4V.

With the new SB-3292SG servo from SAVOX, the Taiwanese manufacturer Savöx has once again achieved a revolution in servo technology. The newly developed 8-pole brushless motor of this monster not only ensures a lower weight (70 grams) compared to the SB-2292SG (79 grams), but also more power and significantly lower heat generation. After 5 minutes of operation, it remains up to 20% cooler than its predecessor, the SB-2292SG. This significant improvement means that the servo delivers maximum power for much longer and the model feels significantly harder, more direct and more precise.

The SB-3292SG is significantly quieter thanks to the latest technology and is hardly noticeable during normal operation. The well-known “beeping” of the digital servos has been almost eliminated without having to accept any disadvantages.

The completely new motor design with the 12bit 4096 control unit brings many advantages that offer ambitious pilots new possibilities.

Of course, the SB-3292SG has a soft start, i.e. the servo slowly moves to the desired position as soon as voltage is applied/the receiver is switched on.

This servo is part of Savöx's Monster Line, making it suitable for both RC cars and airplanes. Its robust construction and high torque output ensure reliable performance in various applications.

Features:

• SSR mode compatible
• SOFT START
• LOCK PROTECTION
• Full Aluminum Case
• 3 Precision Ball Bearings.

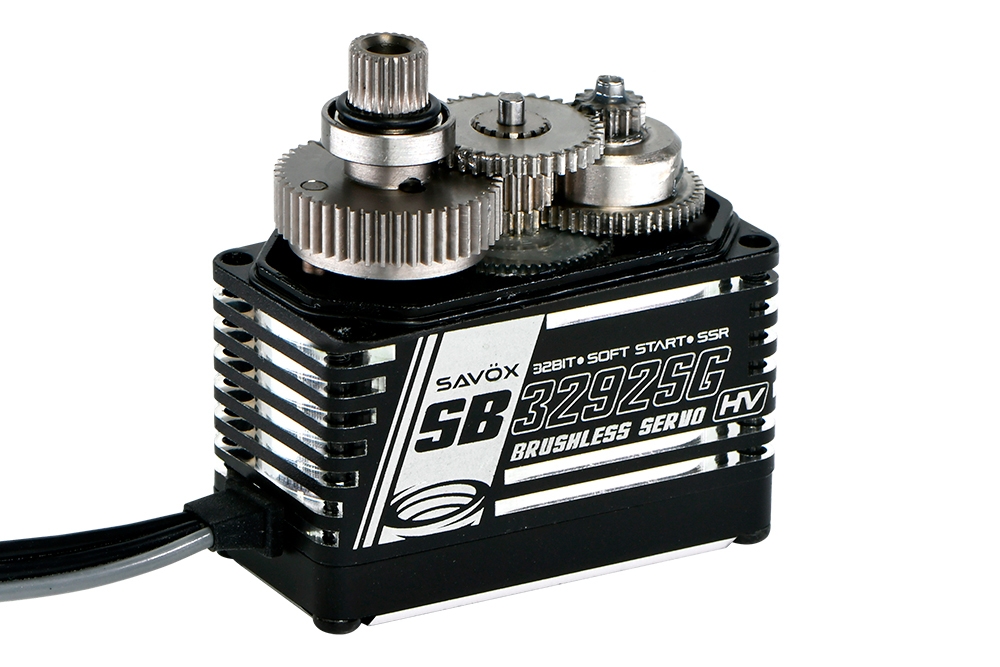

• Unique steel gears

Specifications:

• Torque @ 6v - 32.0kg
• Torque @ 7.4v - 40.0kg
• Torque @ 8.4v - 55.0kg
• Speed @ 6v - 0.085 sec/60 deg
• Speed @ 7.4v - 0.07 sec/60 deg
• Speed @ 8.4v - 0.055 sec/60 deg

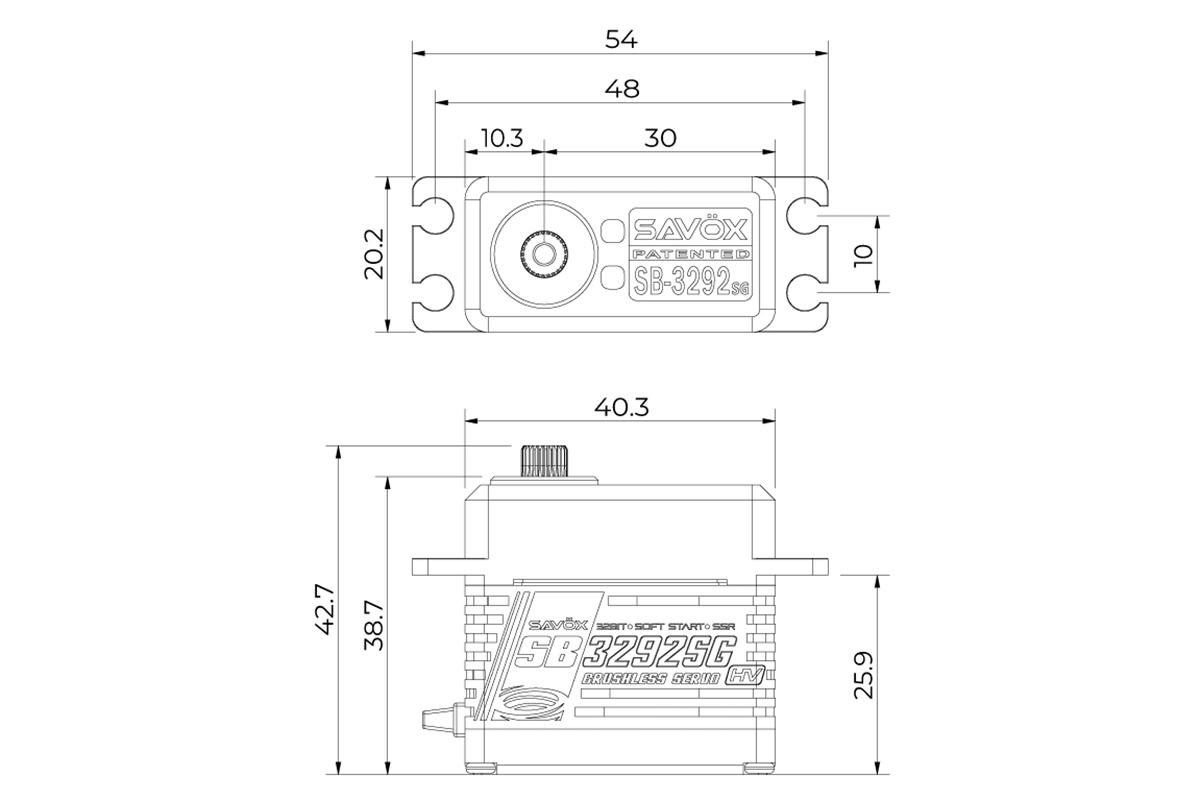

• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 70g

Technical Details

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 200mA @6.0V, 220mA @7.4V, 250mA @8.4V
• Stall Current (at locked): 8000mA @6.0V, 10000mA @7.4V, 12000mA @8.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 1000 → 2000 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 50-360 Hz
• Motor Type: Brushless
